Possible breaking change:
When upgrading from earlier versions of EasyController, any existing saved presets with pip cropping applied may behave differently when loaded in the new version of EasyController (the pip crop area may appear differently from what was previously intended). This change was necessary to accommodate the revised xpo crop implementation as the earlier preset file format did not contain all necessary information to properly handle preset pip crops for video sources across video source resolution changes. Re-saving the preset from the updated EasyControler will provide a more stable preset.
New features and enhancements:
- Embedded Chromium Browser updated.
Updated the Chromium version in the admin tools
- Revised XPO Integration which improves overall Display Wall interaction including PIP Cropping and PIP Movements.
When upgrading from earlier versions of EasyController, any existing saved presets with pip cropping applied may behave differently when loaded in the new version of EasyController (the pip crop area may appear differently from what was previously intended). This change was necessary to accommodate the revised xpo crop implementation as the earlier preset file format did not contain all necessary information to properly handle preset pip crops for video sources across video source resolution changes. Re-saving the preset from the updated EasyControler will provide a more stable preset.
- Updates dependencies related to Screen Capture.
- Extended Source Exclusivity to support Master-Client Controller model where multiple users can interact with Master Controller.
You can now combine Easy controllers within the same room to share exclusive sources between slave and master controllers. Scenario: You have a room with one main controller and two operator desks, each with their own controller. When you authorize yourself with the RFID card at one of the operator desks, your exclusive sources will also be available on the master controller. This gives you the flexibility to share content from all operator desks to the main display wall.

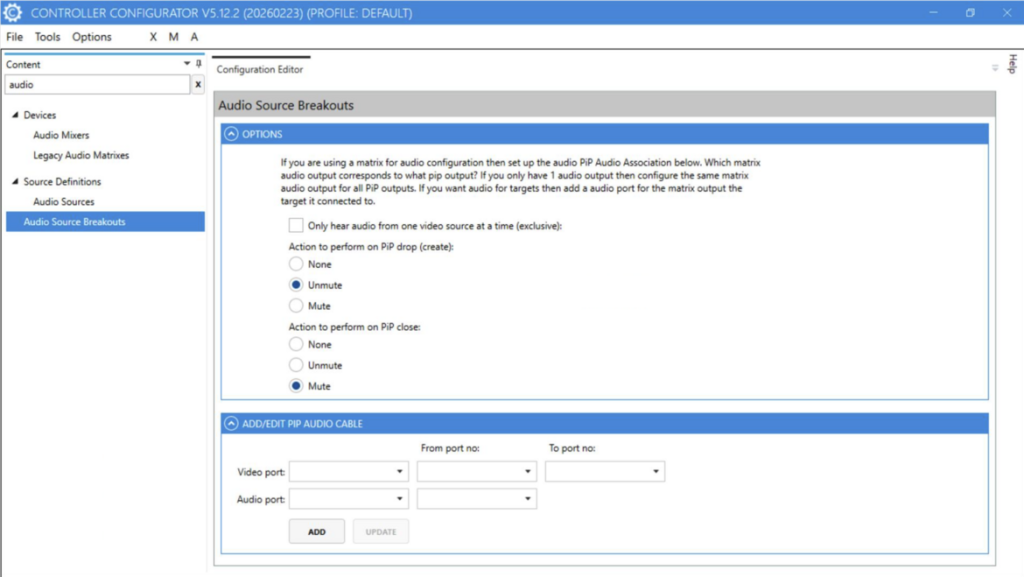

- Ability to choose range of video output ports when defining Audio Breakouts.
- Dependencies update.
- Resolved conflict between Cisco Camera tracking with in-built VC Camera tracking based on MIC.
- Don’t mute Matrix Output when port is connected to XPO – New config option.

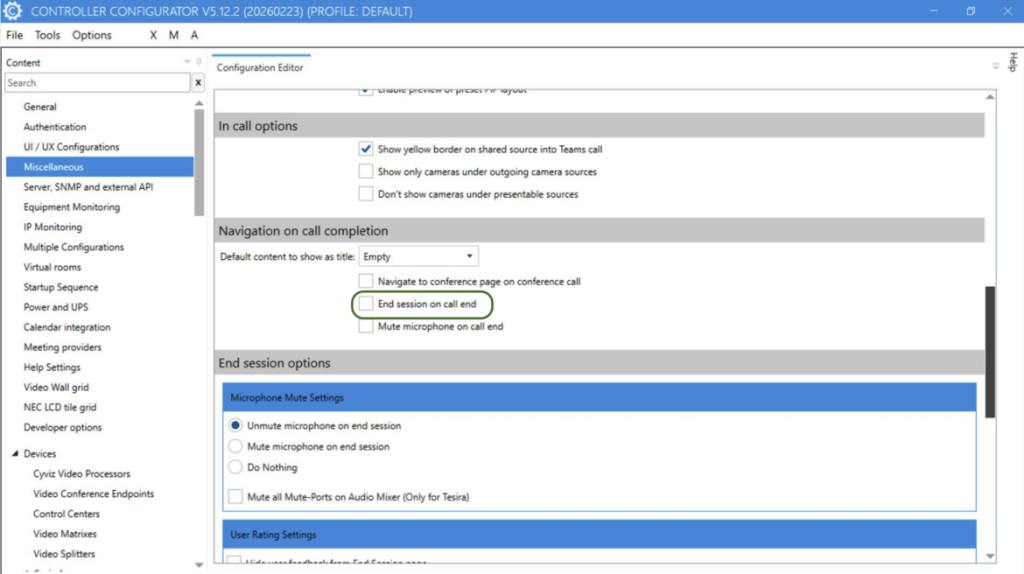

- New Config option to trigger End Session when call ends.
- Alternate Output muting method for LW MX2.
Sends 0 to output.
- Save Preset file when preset is created (after 5 seconds) – Earlier, it was not saving presets unless Controller gracefully exits.
- Server based Source Exclusivity for Lightware Matrices.
- Lightware Hotplug V2 now support output muting.

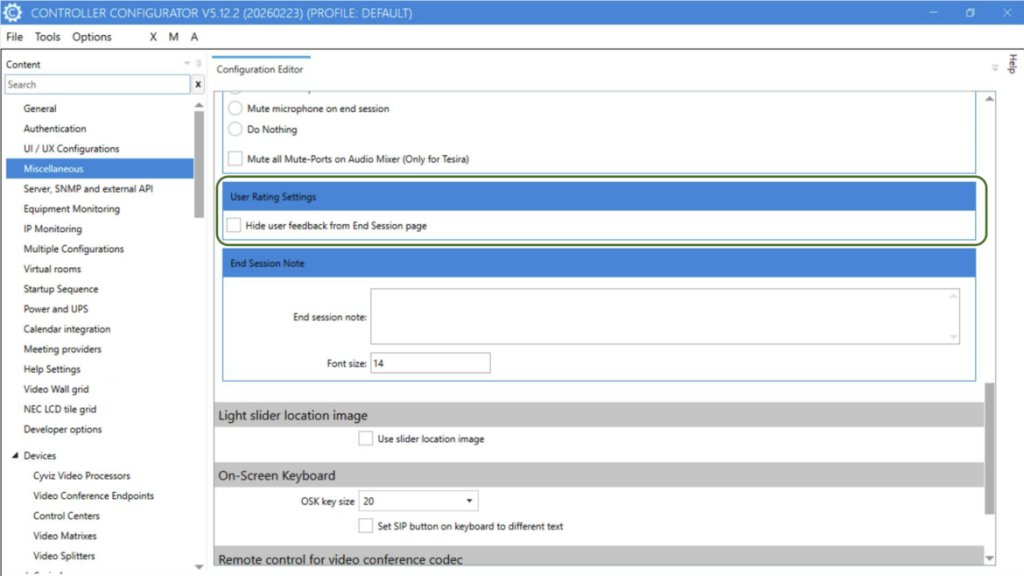

- Ability to disable user feedback option from Controller configuration.
- Krammer 3000 Matrix, fixes related to matrix routing.
- Clear output section on Matrix configuration page now shows if Clear output is for Video or Audio.
- Mouse Scroll support when accessing Controller from Easy Server.
- Ability to control PIP Cropping area using mouse and scroll when accessing from Server.
- Show additional info admin tools related to OS and Framework.
- Option to disable Source Exclusivity (Matrix based).
- Weytec gateWEY integration with Source Exclusivity. !!Project spesific integration only!!.

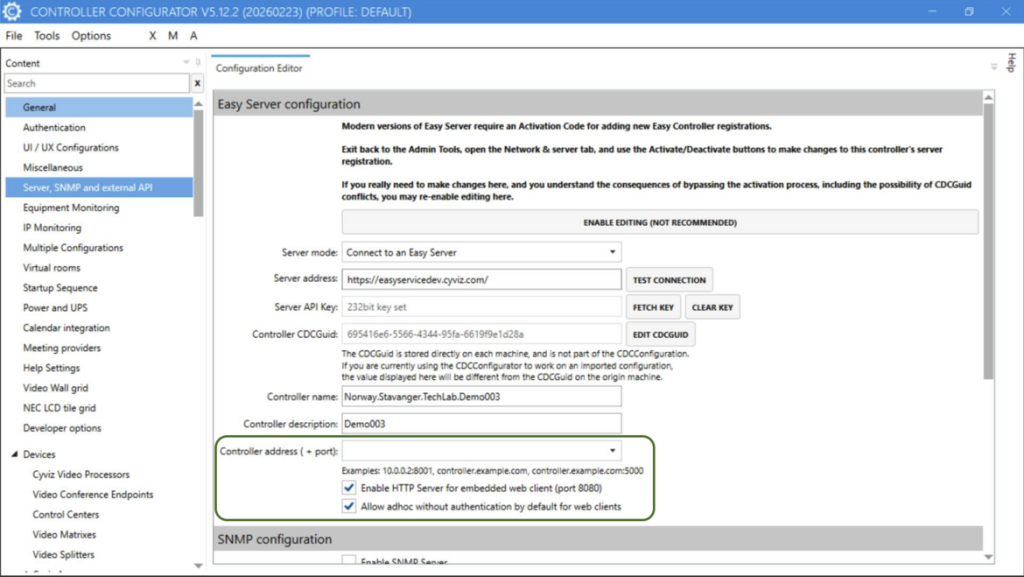

- Embedded WebClient into Controller.
You can now run WebClient without a server. The WebClient must run on a device connected to the same network as the Easy Controller.
- Mic muting for Cisco takes few seconds when there are multiple mics. Fixed command order to address the problem.
- New Communication Proxy implementation to support http proxies.
- Telnet api support for individual volume controls.
Cyviz Easy Controller – API Commands – Version 2.19

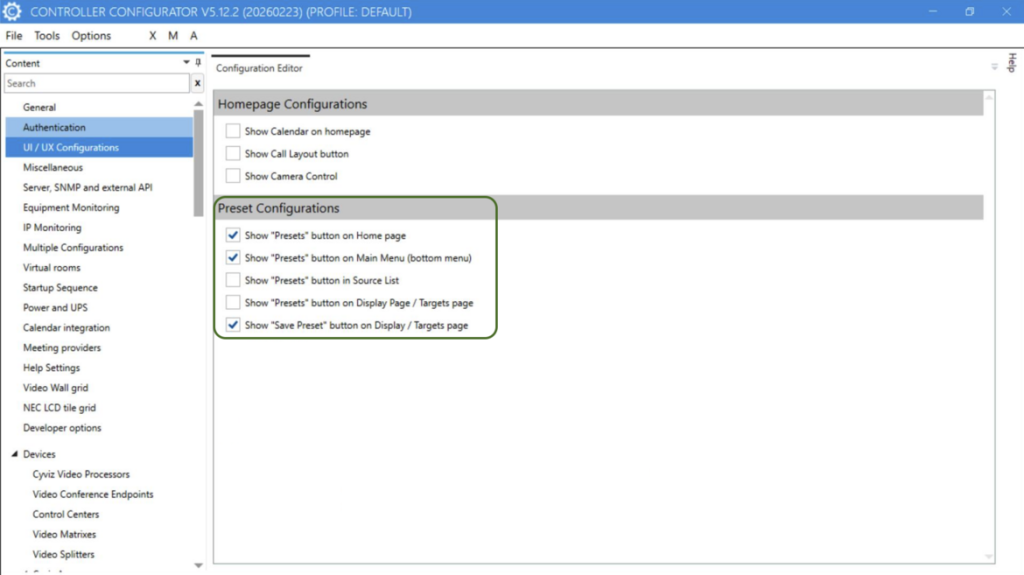

- New config option to Controller visibility to Preset buttons. Also added option to make presets visible in Source List.
- SoftKVM support – Control DesktopAgents from WebClient.

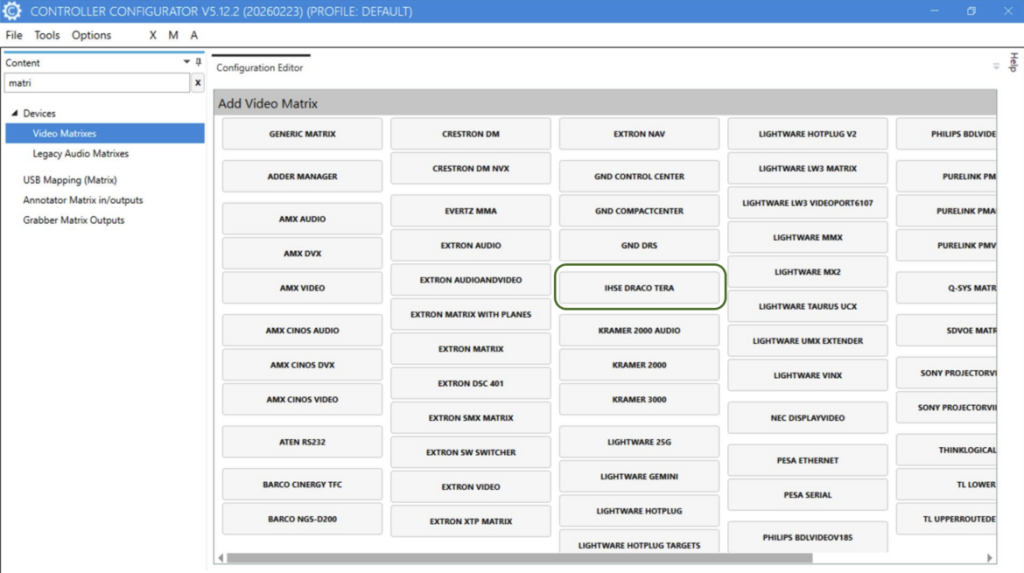

- IHSE Matrix integration – Approved and tested unit: 481 and 497
- Option to choose Cisco output port for OSD.

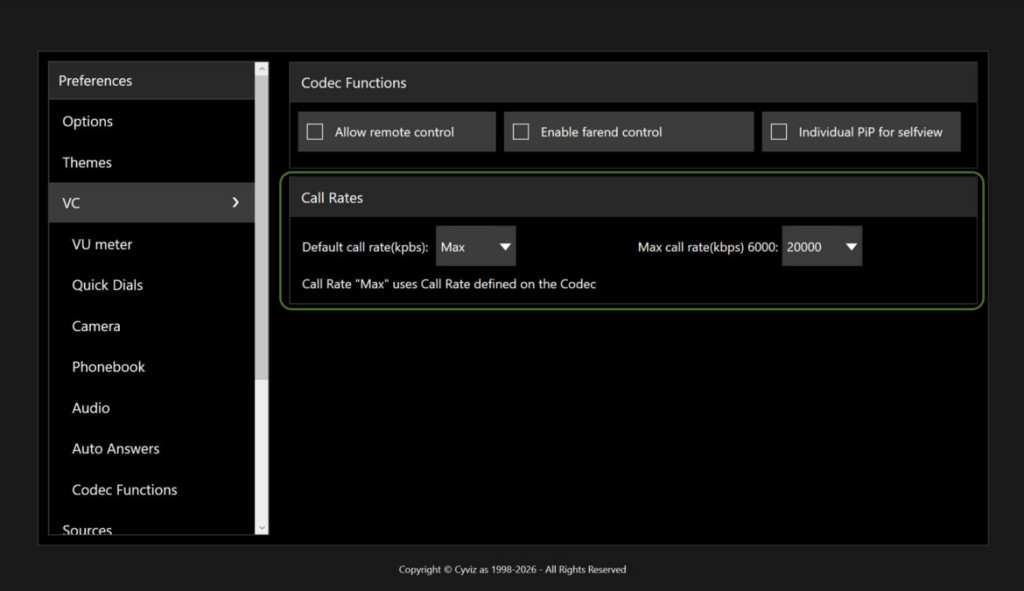

- Call Rate option for Cisco- Set max to use call rate configured on Codec.
This can be configured on the preference page.
- Dynamic Sources, implement group hierarchy.
Easy Server version 7.8.0.2 is required.

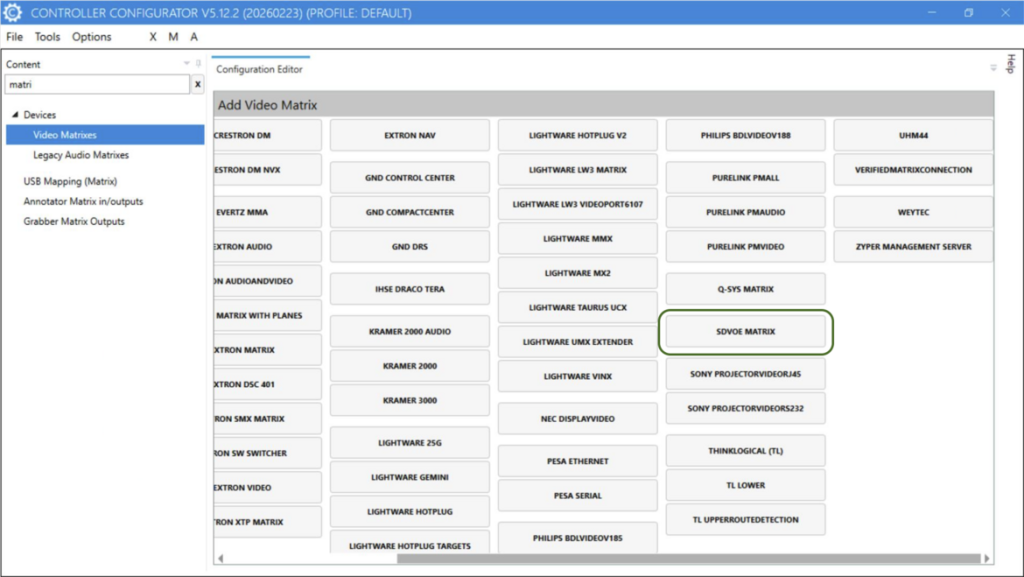

- SDVOE Matrix integration – Implemented and tested for Lightware TPN series products.
- Codec Presentation & Main source names changed so that Presentation or Main remains in the beginning. Useful when there is not enough space to show full source name.

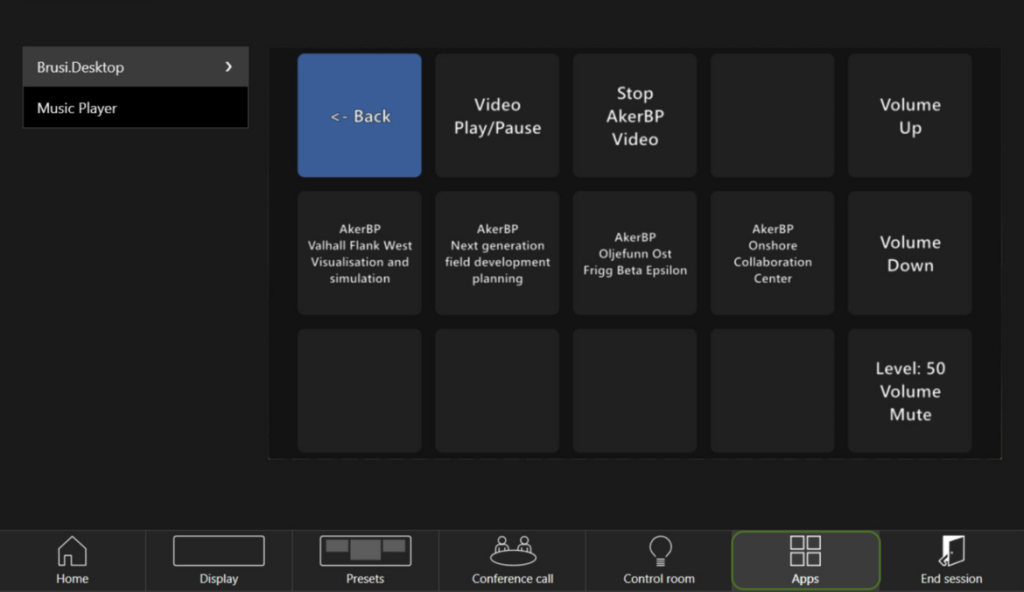

- Separate tab for 3rd party applications. Also moved Desktop agents on Apps page.
Desktop Agents and third-party applications have been relocated from the Control Room page to a new section called Apps.

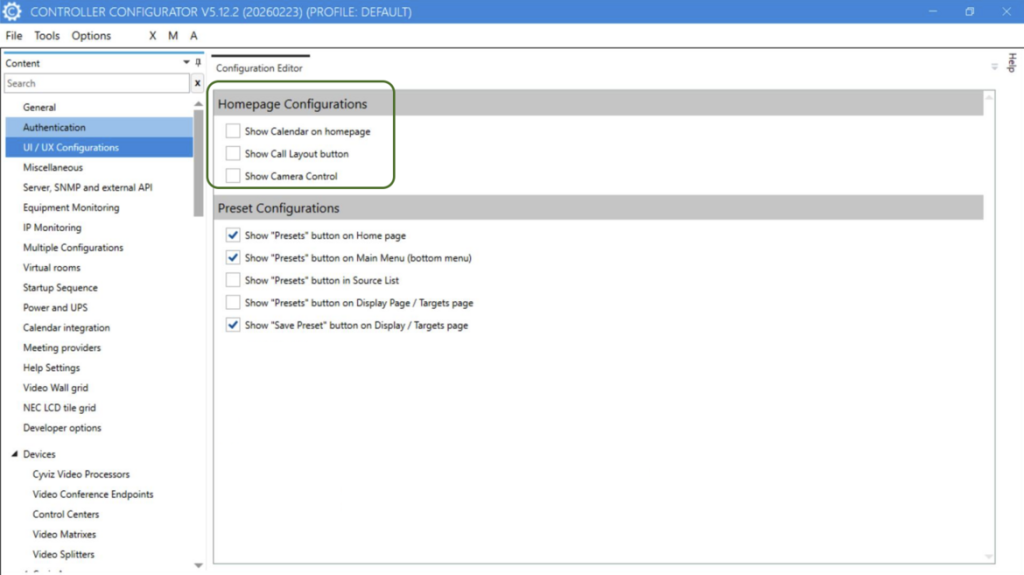

- Configurable Frontpage.
- Support for Lightware UCX 4×3
